New worcester series 36 electric actuator 2036TWM1RD

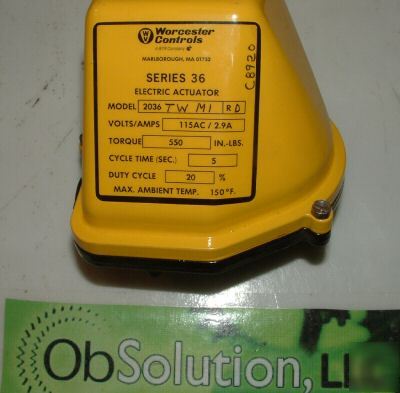

WORCESTER SERIES 36 ELECTRIC ACTUATOR 2036TWM1RD NEW
ALL ITEMS INCLUDED ARE PICTURED
The Series 36 Unidirectional Electric Actuator provides direct, positive, automatic, on/off quarter-turn valve operation at a low cost. It requires only a single electrical connection as a power source, and it can be easily installed in most piping systems because of its compact design.
Series 36 actuators are available in two sizes to meet different torque requirements. The 1036 delivers a rated torque of 150 in-lbs. and the 2036 delivers 550 in-lbs. Both sizes can be provided with an auxiliary limit switch for remote indicating lights to provide positive indication of valve position or for other various uses.
* Simplified mounting and installation with female drive output.
* Integral overload protection with automatic reset.
* Permanently lubricated, sealed gear train.
* One additional 5 Amp. SPDT switch for remote indication.
* Nominal cycle time for 90° appox. 5 seconds.
* Voltages options are 120VAC and 240VAC
