Atc precision switch cam programmer 324C08C3G

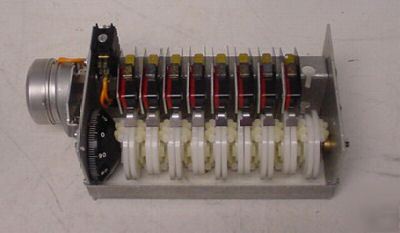

ATC PRECISION SWITCH CAM PROGRAMMER 324C08C3G
A compact and economical motor-driven cam timer, the 324C precisely controls one to twelve load circuits through easily-set screwdriver-adjustable cams. Each timer provides a wide range of cycle times through a set of interchangeable gears.
Easy and Precise Cam Adjustment: With ATC’s unique split-cam design, each side of the cam is separately screwdriver-adjustable in either direction: either side determines the precise instant during the cycle when the switch will actuate, the other side determines how long the switch will remain actuated. Adjustments are easy and precise: 1/4 turn of the adjusting screw equals 0.5% of cycle time. A setting disc, calibrated in 1% increments, facilitates program set-up and indicates cycle progress.
One to Twelve Precision Switches: Whether used as a time or sequence programmer, the 324C can be ordered with any number of cam-operated switches from one to twelve. Each SPDT precision switch is rated at 10 amps, 120 VAC and is 1/3 hp rated at 120 or 240 VAC.
Wide Range of Cycle Times: The 324C is available with a choice of 14 synchronous motors that provide more than 270 cycle times between 3 sec and 60 hrs. Each motor provides an adjustable range of 21 cycle times, with a ratio of over 2.5:1, through a set of interchangeable gears. Changing gears is a simple operation that takes only a few minutes.
Accuracy: The repeat accuracy and setting accuracy of the 324C are both within ± 0.25%. Follower fingers precisely track the contour of the cams, accurately operating the precision switches with quick-break and action.
Sequence Control: The 324C can be ordered without a motor and with a 1 inch long shaft extension on either or both ends, for use as a rotary cam limit switch.

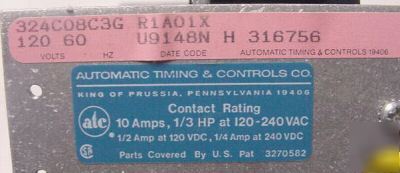

APPROVALS: File No. E24305, LR26970
Repeat Cycle/Stop Cycle Dynamic Brake1
Eternal Drive by user, no motor
1 Motor (add $12 for 15 RPM motor
Type Q. $2 for motors J thru N)
2 motors (add $5 for motor codes J thru N)
1/4" dia. X 1" long shaft extension right end (Units with one or no motor)
1/4" dia. X 1" long shaft extension left end (Units with one or no motor)
1/4" dia. X 1" long shaft extension both ends (Motorless units only)
Screw terminal adapters mounted on all switches (Not UL listed with these)
Standard (other than cam settings)
CAMS– Factory setting cams to 0.25% tolerance 50% cams allow 12 to 52% adjustment of switch actuation.2, 3, or 4 cuts equally spaced.Have limited adjustability. (Does not include 50% cams with multiple cuts) Multiple cuts, unequally spaced Multiple cuts — over 4 Specially cut or specially molded cams
LUGS – Bag of 50 push-on terminal lugs uninsulated Part No. 2300-260-59-00
BRAKE – Diode brake assembly Part. No. 2300-260-56-00
