Tuff alpha liquid radiation monitor sensor

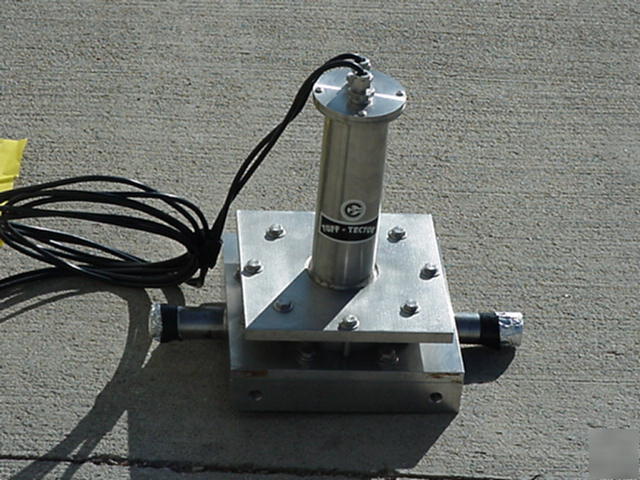

TUFF Alpha Liquid Radiation Monitor Sensor
The TUFF monitor uses patented Tuff-Tector sensor technology to deliver high pressure (up to 100psi), on line alpha detection system. "Real time" alpha monitoring of affluents provide operational savings previously unavailable.
Radiation Detected Alpha in active liquid flow
Photomultiplier tube Hamamatsu R2154 (2" diameter)
Volume of liquid flow 20 gallons per minute
Maximum system pressure 100 psi (4-6 safety factor)
Tuff-Tector 6.00" diameter X 0.125" ruggedized epoxy
Active detection area 130cm(squared)
Calibration built-in access for check source
Decontamination easy access without removal of unit from line
Dimensions of Liquid Monitor 12.5" X9" X9" (31.8cm X 22.9cm X 22.9cm)
Dimensions of input and output 1.3125" slip fit for 1" Schedule 40 PVC pipe X 1" deep
