(4) gci transformers, 5604-0198-01 rev.a, pulse, signal

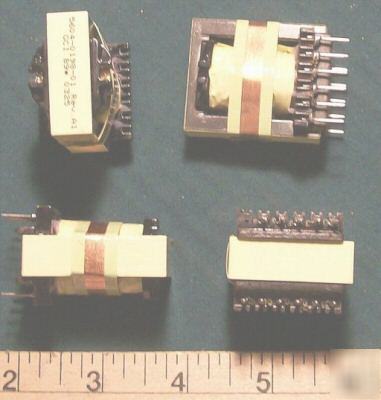

(4) GCI TRANSFORMERS, 5604-0198-01 REV. A,
PULSE TRANSFORMERS, SIGNAL TRANSFORMERS
New, old stock (NOS). I bought a ton of these - and am selling my extra stock. These are isolation RF / signal / pulse transformers.
On one side of transformer, there are 6 pins, which are for 3 sets of independent windings. Each pair of these 3 windings is less than 0.1 ohms resistance. Two of these windings measure 1µH inductance, and one measures 46µH.
On the other side, there are 5 pins, which are for 2 sets independent windings. One winding is tapped, and measures less than .1 ohm and 16µH from tap to one pin and .2 ohm and .2µH from tap to other pin. The other winding measures 0.4 ohm and 570µH.
These transformers can be used to as 1:1 ratio isolation transformers or as step-up and step-down transformers, up to about 16:1. Bandwidth is about 50KHz to about 50MHz.
NOTE: Later availability not guaranteed. LIMITED QUANTITY.
