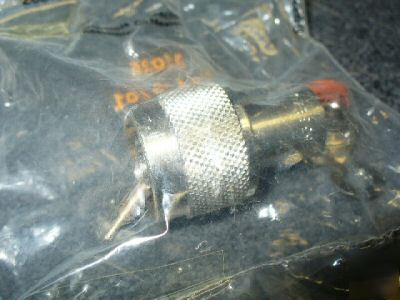

Connector,plug,electrical
BODY STYLE - 5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.375 INCHES NOMINAL
OVERALL DIAMETER - 0.813 INCHES NOMINAL
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 0.625 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - COMPRESSION NUT
CABLE ENTRANCE DIAMETER - 0.212 INCHES NOMINAL
SHELL SURFACE TREATMENT - SILVER
CONTACT POSITION ARRANGEMENT STYLE - ABCE N SINGLE MATING END
INSERT MATERIAL - PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
III PRECIOUS MATERIAL - SILVER
III PRECIOUS MATERIAL AND WEIGHT - 0.105 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT AND SHELL SURFACES SILVER
