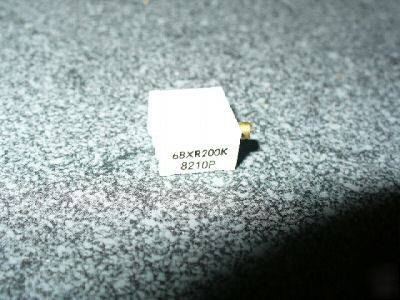

Resistor,variable,nonwire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 200.000 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -100.0 TO 100.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.5 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 70.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 125.0 SINGLE SECTION
BODY LENGTH - 0.375 INCHES NOMINAL
BODY WIDTH - 0.245 INCHES MAXIMUM
BODY HEIGHT - 0.375 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.090 INCHES NOMINAL
SHAFT LENGTH - 0.060 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 6480.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - CLUTCH
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 6480.0 NOMINAL
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.200 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.100 INCHES NOMINAL
TERMINAL LENGTH - 0.180 INCHES MINIMUM
TERMINAL LOCATION - LOWER ADJACENT SIDE SINGLE ROW
RELIABILITY INDICATOR - NOT ESTABLISHED
III OVERALL LENGTH - 0.435 INCHES NOMINAL
III OVERALL HEIGHT - 0.540 INCHES MINIMUM
III OVERALL WIDTH - 0.245 INCHES MAXIMUM
III UNPACKAGED UNIT WEIGHT - 0.04 OUNCES
