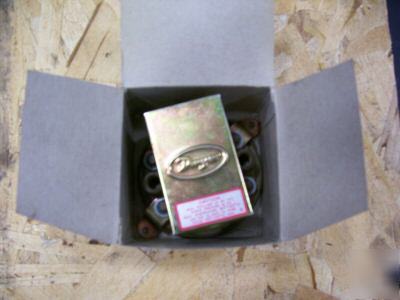

Dwyer compact low differential pressure switch #1910-10
Dwyer Compact Low Differential Pressure Switch #1910-10
- Operating Range (inches w.c.): 3.0 - 11.75
- Approximate Dead Band at Minimum Set Point: 0.40 Minimum
- Approximate Dead Band at Maximum Set Point: 0.40 Maximum
- Service: Air and non-combustible, compatible gases
- Temperture Limits: -30 to 180* F (-34 to 82.2* C)
- Pressure Limits: 45" w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge
- Switch Type: Single-Pole Double-throw (SPDT)
- Electrical Rating: 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates.
- Electrical Connections: 3 screw types, common, normally open and normally closed
- Process Connections: 1/8" female NPT
- Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations
- Set point Adjustment: Screw type inside conduit enclosure
- Agency Approvals: CE,UL,CSA,FM
All pressure and electrical connections and set point adjustments are on one side for easy installation
