Smt/smd rework station+fixture+hot plate

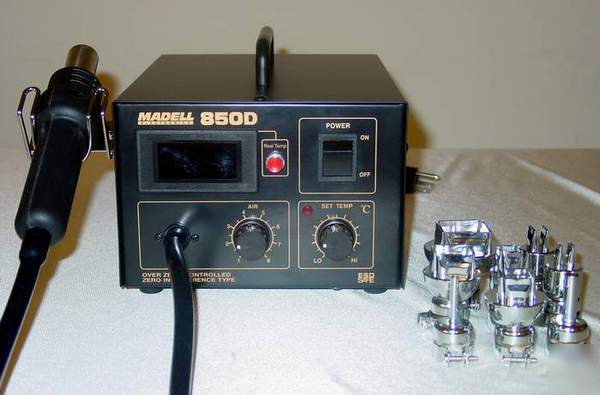

Brand new (still in the box) Madell 850D soldering station for surface mount componets. The station comes with 8 nozzles.
* Built-in sensor for steady temperature control at any air flow pressure.
* Precise air flow and temperature adjustments.
* Good for QFT, SOP, PLCC chips and other components.
* Hot air temperature: 100°C to 480°C.
* Power comsumption: 560W(Max).
* Digital temperature display.
* Delayed air pump shut off for hot air gun and nozzle protection.
* Safe soldering and desoldering with the included nozzles.
* Total 33 nozzles available. The nozzles are standard sizes and are compatiable with Hakko and other hot air soldering stations.
* One year manufacturer's warranty. Service or repair will be done in the US.
* Fast heat up, 10 seconds to reach 250°C.
* Built in temperature sensor for stable temperature control.
* Hot and cool air selection for chip preheating or cooling.
* Used together with a hot air rework station and fixture for BGA and other IC's.
* Temperature: 120°C to 250°C(at nozzle).
* Air volume: 0.18 cubic meter/min.
* Size: 100(W)x60(H)x170(D)mm.
Test it in our Los Angeles showroom. Call (***)670-9023 to make arrangement.
"These 850D's kick royal butt around here, they are in full operation 10 hours a day and the folks love them. They might make the Metcal soldering iron go obsolete. "
