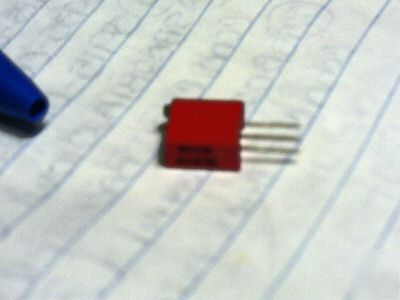

Resistor,variable,nonwire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 100.000 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
MAXIMUM STARTING TORQUE - 5.00 INCH-OUNCES
MAXIMUM RUNNING TORQUE - 5.00 INCH-OUNCES
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -100.0 TO 100.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.5 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 85.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 150.0 SINGLE SECTION
BODY LENGTH - 0.420 INCHES MAXIMUM
BODY WIDTH - 0.170 INCHES NOMINAL
BODY HEIGHT - 0.375 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.075 INCHES NOMINAL
SHAFT LENGTH - 0.080 INCHES MAXIMUM
ACTUATOR TRAVEL CONTROL FEATURE - CLUTCH
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 5400.0 MINIMUM AND 10800.0 MAXIMUM
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.200 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.100 INCHES NOMINAL
TERMINAL LENGTH - 0.300 INCHES MINIMUM
RELIABILITY INDICATOR - ESTABLISHED
RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.010
TEST DATA DOCUMENT - 81349-MIL-R-39035 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-39035/2 GOVERNMENT SPECIFICATION
III OVERALL LENGTH - 0.810 INCHES MAXIMUM
III OVERALL HEIGHT - 0.390 INCHES MAXIMUM
III OVERALL WIDTH - 0.195 INCHES MAXIMUM
III FRAGILITY FACTOR - MODERATELY DELICATE
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-39035/2
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RJR24FW104R
