> Ve big transformer l-1844 115V out 80 ma dc 260-3K vdc
Ve big transformer l-1844 115V out 80 ma dc 260-3K vdc

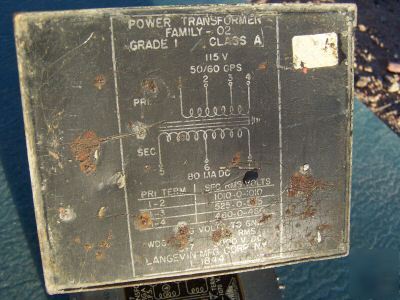

Secondary: 80 MA DC These were tested 15 years ago but the ohmages are
RMS VOLTS term 1 to 2 - 1010-0-1010 post 4 to 3 - 10.6 ohm post 7 to 6 250 ohms
term 1 to 3 - 525-0-525 post 3 to 2 - 2.1 ohm post 6 to 5 237 ohms
term 1 to 4 - 460-0-460 post 2 to 1 - 0.8 ohm
HIGH VOLTAGE FOR PROFFESIONALS ONLY.
