Bbc boveri brown logic card gh r 414 0000 V0 062 034 65
Made by BBC Brown Boveri. It was sold under the Sigma-Tronic B system for Industrial controls.
This is a used, and tested card in good condition.
With a 3 month RTB (Return To Base) Warranty.

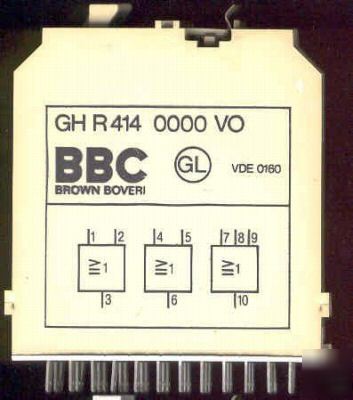

This OR gate module has 3 independent OR gates 2 of which have 2 inputs and the other has 3 inputs.
Tech Data: Current consumption: 0-signal at output 5mA, 1-signal at output 10mA
The operating voltage for the sigma-Tronic system is 24v d.c. (with a tolerance of 30% i.e. 16.8v to 31.2v a ripple up to a peak amplitude of 4v is permissible)
Other part numbers used for this part are:
GH R414 GHR414 GH-R-414 GH-R 414 GH R-414 GHR 414 and 062 034 65
These modules are also ideal for small DIY logic projects (such as model railway control or hydraulic control) as they do not require a programmer or software. Also the logic circuit can be added to as required.
I have only listed the common logic blocks but if you need a particular BBC card that is not in my shop please e-mail for availability and price.
