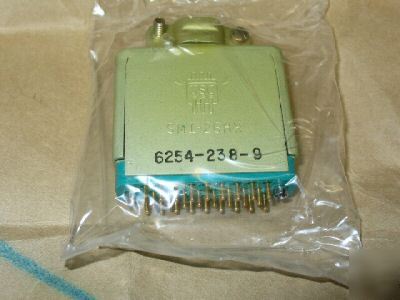

Connector,plug,electrical
BODY STYLE - 18A HOOD, TOP OPENING W/CLAMP
OVERALL LENGTH - 1.562 INCHES NOMINAL
OVERALL HEIGHT - 1.905 INCHES NOMINAL
OVERALL WIDTH - 0.406 INCHES NOMINAL
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 0.281 INCHES NOMINAL
SHELL TYPE - HOOD, TOP OPENING
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - ANODIZE
POLARIZATION METHOD - GUIDE PIN/SOCKET
INSERT MATERIAL - PLASTIC DIALLYL PHTHALATE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-M-19833,TYPE GDI-30F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 26 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 7.5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 450.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TYPE 2,CLASS 4 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND VIBRATION RESISTANT AND WATERTIGHT
III PRECIOUS MATERIAL AND WEIGHT - 0.026 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
MFR SOURCE CONTROLLING REFERENCE - 6254-238-9
