E.f. johnson 124-113 screen grid by-pass capacitor ef

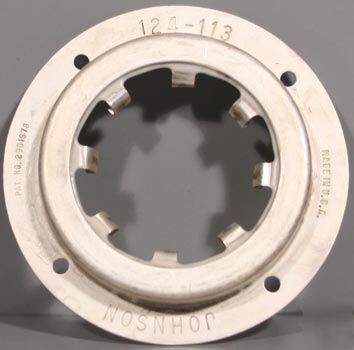

E.F. Johnson 124-113 (believed to be 124-0113-001 equivalent) Screen Grid By-Pass Capacitor
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from E.F. Johnson and are for a 124-0113-001 and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
Type: 1450 pF Screen Grid By-Pass Capacitor
Circular silvered-mica screen grid by-pass capacitor mounted in a low-loss, silicone sealed silver plated drawn brass housing. For use with these and similar sockets: 124-0107-001, 124-0114-001, 124-0311-100.
* Capacitor dielectric strength tested at 1000 VDC
* Low inductance, silver-plated contact fingers provide sensitive contact pressure.
Housing: Brass per QQ-B-626D, .0001" silver plated
Contacts: Beryllium copper per QQ-C-533, .0001" silver plated
