LMC6001 ultra ultra low current low noise opamp qty:2
Ultra Ultra Low Input Current OpAmp
Featuring 100% tested input currents of 25 fA max., low operating power, and ESD protection of 2000V, the LMC6001 achieves a new industry benchmark for low input current operational amplifiers. To avoid long turn-on settling times common in other low input current opamps, the LMC6001A is tested 3 times in the first minute of operation. Even units that meet the 25 fA limit are rejected if they drift.
Because of the ultra-low input current noise of 0.13 fA/SqrtHz#, the LMC6001 can provide almost noiseless amplification of high resistance signal sources. Adding only 1 dB at 100 kohm, 0.1 dB at 1 Mohm and 0.01 dB or less from 10 Mohm to 2,000 Mohm, the LMC6001 is an almost noiseless amplifier.
The LMC6001 is ideally suited for electrometer applications requiring ultra-low input leakage such as sensitive photodetection transimpedance amplifiers and sensor amplifiers. Since input referred noise is only 22 nV/SqrtHz#, the LMC6001 can achieve higher signal to noise ratio than JFET input type electrometer amplifiers. Other applications of the LMC6001 include long interval integrators, ultra-high input impedance instrumentation amplifiers, and sensitive electrical-field measurement circuits.
(links open in same browser, use BACK button to return)
US: $3.75 Canada: $4.50 International: $5.50 Economy option.
2-nd item: saves 50% of its S&H
items 3, 4: each saves 60% off their S&H
items 5, 6, 7: each saves 70% off their S&H
items 8 and higher: save 80% off their S&H
Items are ordered highest S&H amount first.
Be sure to add me to your favorites list!

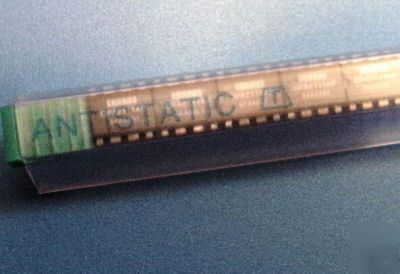

photo may show different part number
