Astec LPS174 switch mode power supply 110W
ASTEC LPS174 Switch Mode Power Supply
Input range: 85-264 VAC, 120-300 VDC
Inrush current: 38 A max, cold start @ 25°C
Efficiency: 75% typical at full load
EMI filter: Meets FCC Class B conducted
VDE 0878 PT3 Class B conducted
Safety ground: leakage current 1.0 mA @ 50/60 Hz, 264 VAC input
Maximum power: 110 W convection (75 W with cover)
175 W with 30 CFM forced air (130 W with cover)
Adjustment range: 2:1 wide ratio minimum
Hold-up time 20 ms @175 W load at nominal line
Overload protection: Short circuit protection on all outputs.
Case overload protected: @ 110-145% above peak rating
Overvoltage protection: 10% to 40% above nominal output
Standby output: 5 V @ 2A regulated ±5%
Aux output: 12 V @ 1 A -5 %, +10%
LPS174: 15 V (12-24 V) 0 A 7.3 A 12 A 13.2 A ±2% <1%

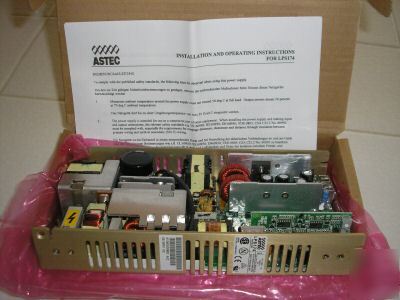

This item is in the original package with installation and operating instructions for the LPS174 power supply. This power supply lists for over $200 new.
