Dc motor control 1/20-2HP 115/230V bicl mini -lathe
NO EXTRA HEATSINK NOR HP RESISTOR REQUIRED!

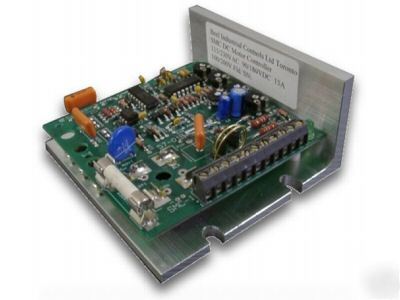

The SMC is a cost efficient reliable control for PM and Shunt Wound DC Motors. Installations are easily made to a barrier type terminal strip and large trim pots facilitate field adjustments. The SMC Series is ideally suited for: drill presses, lathes, bandsaws, conveyors, packaging machines, printers, process equipment centrifuges, and pumps.
* Start-Stop Inhibit Circuit
* Compact Size: 4â€H x 4â€W x 2â€D (107mm x 07mm x 52mm)
* 4-20 ma output proportional to speed (SMC-OP)
* Auto/Man Switch (Enclosed Models)
* NEMA 1, 4, 4X, 12 Enclosures
* Speed Reference Voltage max. + 10VDC
* Operating temperature 0- +45ËšC
* Storage tempature 0- +60ËšC
* Min speed: 0-80% of max.
* Max. speed: 33-120% of max
* Accel/ Decel: 0.5 to 20 seconds
* Speed Control pot value 5K ohms
* Start/Stop switch: dry contract
* Canadian purchasers must pay all relevant taxes.
Add an SMC Reversing Kit Option
DC Motor Controller ½ - 1½HP 115/230VAC
(Power On/Off, Toggle, Speed Pot., Special Reversing Toggle, Dynamic Brake, Enclosed Model)
