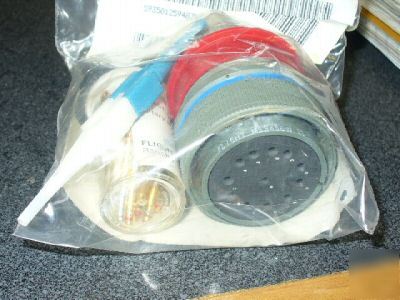

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 2.125 INCHES MAXIMUM
OVERALL DIAMETER - 1.969 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE - BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNS AND UNS
NOMINAL THREAD SIZE - 1.750 INCHES AND 1.750 INCHES
THREAD QUANTITY PER INCH - 18 AND 18
THREAD DIRECTION - RIGHT-HAND AND RIGHT-HAND
NOMINAL THREAD LENGTH - 0.467 INCHES AND 0.664 INCHES
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - ANAR 28-18 SINGLE MATING END
INSERT MATERIAL - RUBBER SILICONE CLASS Q SINGLE MATING END
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM CURRENT RATING IN AMPS - 22.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 3000.0 SINGLE MATING END 1ST CONTACT GROUPING, 500.0 SINGLE MATING END 2ND CONTACT GROUPING, 200.0 SINGLE MATING END 3RD CONTACT GROUPING, 900.0 SINGLE MATING END 4TH CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 4200.0 SINGLE MATING END 1ST CONTACT GROUPING, 700.0 SINGLE MATING END 2ND CONTACT GROUPING, 250.0 SINGLE MATING END 3RD CONTACT GROUPING, 1250.0 SINGLE MATING END 4TH CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE - CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION - BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
SPECIAL FEATURES - IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-189-3225,P/N M85049/52-1-28W FOR THE STRAIGHT STYLE,OR NSN 5935-01-174-3672,P/N M85049/51-1-28W FOR THE RIGHT ANGLE STYLE
TEST DATA DOCUMENT - 81349-MIL-C-5015 SPECIFICATION
SPECIFICATION/STANDARD DATA - 96906-MS3456 GOVERNMENT STANDARD
III PRECIOUS MATERIAL AND WEIGHT - 0.012 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-5015
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3456W28-18S
