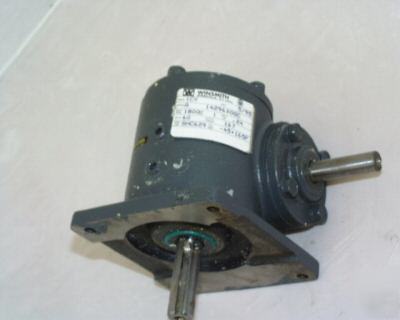

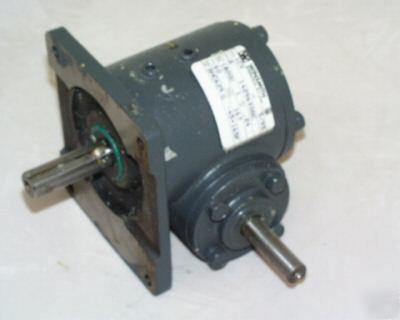

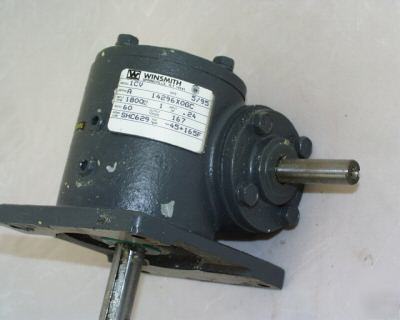

New speed reducer transmission winsmith model 1CV
Peerless-Winsmith 60:1 Right Angle Drive Motor Driven Worm gear: 1/4HP max input @ 1800RPM. Output torque: 167 foot pounds max. Input shaft: 1-5/8" Long, 1/2" diameter, keyed. Output shaft: 1-15/16" Long, 5/8" Diameter, keyed. Overall dimensions: 5" long x 4-3/4" wide x 4-1/4" height, excluding shafts. Winsmith P/N 1CV. Motor not included. New in factory
