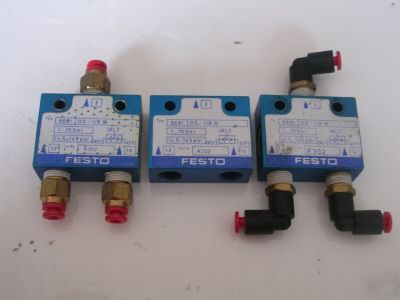

3 used festo pneumatic valve, M5 compact sys, os-1/8 b
Used Festo Pneumatic Pressure Gate Valve or Shuttle Valve
Type OS-1/8B, Part Number 6681
The OR gate has two inputs (X and Y) and one output (A). The valve automatically blocks the input which is not pressurised. If both inputs are pressurised simultaneously at different levels, the higher pressure is fed to the output A. An OR valve (or shuttle valve) is used to allow a function to be executed from either of 2 different places. An output signal is present whenever at least one of 2 signal inputs is activated
For More Info Please go to the Festo site at;
http://catalog.festo.com/data/CAT_PDF/001/M5COMPACT_EN.pdf
