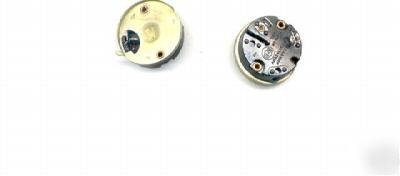

Clarostat ad a switch for potentiometer p/n 60-36
...........................................
BUSHING: N = standard ;L = locking switch; S = panel & shaft seal ;
Temperature & Moisture Characteristics: Y = as per MIL-R-94
SHAFT STYLE: S = slotted ; F = flatted
SHAFT LENGTH: L = 3/8"; B = 1/2"; A = 5/8"; D = 7/8";
RESISTANCE VALUE: total resistance value in : first two digits significant, third digit = number of zeroes
TAPER & TOLERANCE: A = linear 10% ; B = linear 20%; C = logarithmic 10%; D = logarithmic 20%; E = reverse logarithmic 10%; F = reverse logarithmic 20%
NOTE: not all part number combinations are valid
............................ Commercial Part numbers
SERIES: S = series S ; blank = standard
BUSHING: L = locking ;W = panel & shaft seal
BUSHING LENGTH: blank = 1/4" ; 6 = 3/8"
TAPER:U = linear; A = logarithmic; B = reverse logarithmic
RESISTANCE VALUE:total resistance value in : first two digits significant, third digit = number of zeroes
TOLERANCE : 1 = 10% of nominal ; 2 = 20% of nominal
SHAFT STYLE:R = round ;S = slotted ;F = flatted
SHAFT LENGTH:16 = 1/2" ;20 = 5/8";24 = 3/4";28 = 7/8";32 = 1";36 = 1 1/8"
NOTE: not all part number combinations are valid
...............................
..................................
SU S28 ; SU S12 ; SLU S20 ; SLU S28
RV6NAYSD A ; RV6NAYSL A ; RV6LAYSA A ; RV6LAYSD A
392M / 382C3 ; 392M / 382C4 ; 392M / 382C2 ; 393M / 382C5
WA2G056S UA ; WA2G024S UA WA2L040S UC ; WA2L056S UC
WA2G056S ; UA WA2G024S ; UA WA2L040S UC; WA2L056S UC;
.............................................................
The above information is the result of my research and is subject to error; please do your own researches, if you disagree, let me know.
