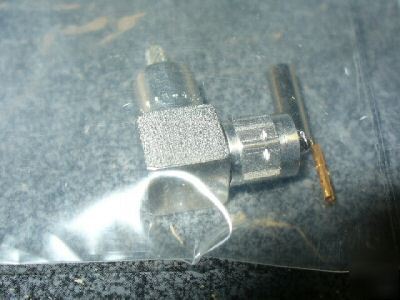

Connector,plug,electrical
BODY STYLE - 3D ANGLE, SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 0.738 INCHES MAXIMUM
OVERALL HEIGHT - 1.375 INCHES MAXIMUM
OVERALL DIAMETER - 0.400 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNS
NOMINAL THREAD SIZE - 0.250 INCHES
NOMINAL THREAD LENGTH - 0.055 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CRIMP TYPE
CONTACT POSITION ARRANGEMENT STYLE - ABCX SM SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 250.0 SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM FREQUENCY RATING - 12400.0 MEGAHERTZ SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND VIBRATION RESISTANT AND SALT WATER RESISTANT
SPECIAL FEATURES - CONTACT DESIGNATION SMA
TEST DATA DOCUMENT - 81349-MIL-C-39012 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-39012/56 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACE GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-39012/56
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M39012/56-3026
