Spc technologies SPCM9000 weld monitor

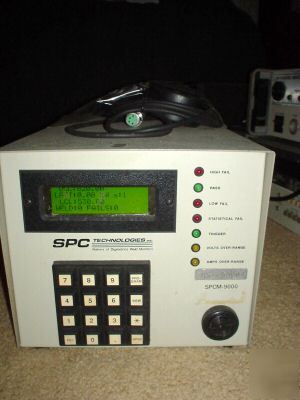

SPC Technologies SPCM-9000 Weld Monitor
* For detailed specs click the following link: http:// /spcm9000.html
* Measurements: Peak Volts, Peak Amps, Peak Watts, Millivolt-Seconds, Amp-Seconds and Watt-Seconds
* Input Ranges: 0-10 Volts Peak, 100-100K Amps Peak
* Display:4 Line by 20 Character, Backlit LCD
* Rate:25 half cycle welds per second
* Status Lights: High, Pass, Low, SPC Fail, Trigger, Volts Channel Overrange and Amps Channel Overrange
* Triggering:Internal or external on Volts or Amps. User adjustable trigger threshold with DSP filters to eliminate false triggering. Pre-trigger data is incorporated in final readings
* SPC:Calculates mean, standard deviation and range for user definable population and sample group. The Mean is compared to separate SPC limits
* Spike: Separate limits for voltage and current spike detection.
* Relay Outputs Three TTL DC relays for weld, SPC and spike conditions. Fully user programmable for pass/fail, normally open/closed with automatic, manual and remote fail reset.
* Serial Output: Weld count, fail count, Pass/Fail condition, weld measurements, half cycle count, statistical mean, standard deviation and range.
* Weld Schedules:Eight different weld schedules, selected from the front panel or from and external controller
* Cycle Counter:Counts number of half cycles per weld (Internal Trigger Only)
* Push to Test: ests voltage and current input signal channels
* Security:User programmable access code eliminates unauthorized changes in monitor settings
* Power Supply:120/240 Volts, 50/60 Hz
* Weight 12.5"L X 8"W X 7"H 17 Lbs
