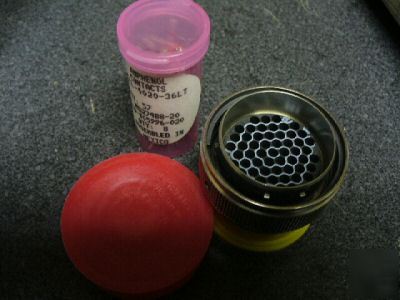

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.375 INCHES MAXIMUM
OVERALL DIAMETER - 1.570 INCHES NOMINAL
CONNECTOR LOCKING METHOD - BAYONET SLOT
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNS
NOMINAL THREAD SIZE - 1.286 INCHES
SHELL MATERIAL - STEEL CORROSION RESISTING
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - CJAP 55#20 SINGLE MATING END
INSERT MATERIAL - CERAMIC SINGLE MATING END
INCLUDED CONTACT QUANTITY - 55 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - RHODIUM SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - VIBRATION RESISTANT AND SHOCK RESISTANT AND MOISTURE RESISTANT AND DUST RESISTANT AND SAND RESISTANT AND FIRE RESISTANT AND HEAT RESISTANT
III OPERATING TEMP RATING - -67.0 DEG FAHRENHEIT MINIMUM AND 460.0 DEG FAHRENHEIT MAXIMUM
III PRECIOUS MATERIAL - RHODIUM
III PRECIOUS MATERIAL AND WEIGHT - 0.055 RHODIUM GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES RHODIUM
