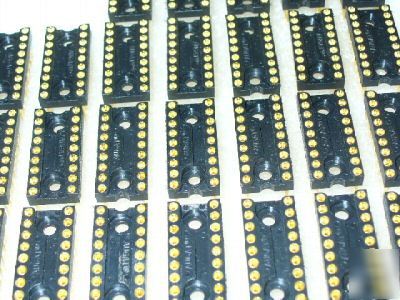

Socket,plug-in electronic components
CONTACT POSITION ARRANGEMENT STYLE - 1801A DUAL IN-LINE
ACCOMMODATED CONTACT QUANTITY - 18
CONTACT MAXIMUM CURRENT RATING IN AMPS - NOT RATED
CONTACT MATERIAL - BERYLLIUM COPPER
CONTACT SURFACE TREATMENT - GOLD AND NICKEL OR TIN
BODY STYLE - 54B PCB, STANDOFF TERMINALS
OVERALL LENGTH - 0.900 INCHES MAXIMUM
TERMINAL LENGTH - 0.510 INCHES MAXIMUM
OVERALL HEIGHT - 0.705 INCHES MAXIMUM
OVERALL WIDTH - 0.400 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY - 18 PIN
MOUNTING TYPE FOR WHICH DESIGNED - PRINTED CIRCUIT
PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE - 1801E EIGHTEEN HOLE
III PRECIOUS MATERIAL AND WEIGHT - 0.018 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT AND TERMINAL SURFACES GOLD
