New pfa ast-100 robot compliance wrist accomodator


* Lateral stiffness = 47.7 N/mm (272 lb/in)
* Rotational stiffness = 494 N-mm (4370 mrad)
* Axial stiffness = 1800 N/mm (10720 lb/in)
* Torsional stiffness = 25.0 N-mm/mrad (221 in-lb/rad)
* Max axial load = 6200 N (1400 lb)
* Lateral travel = +-2.5 mm (0.100”)
* Rotational travel = +-17 mrad (1.0 degree)
* Self centering repeatability = +-0.05 mm (0.002”)
* This unit also comes with an optional air actuated lockout mechanism that can be unbolted & removed if not needed.

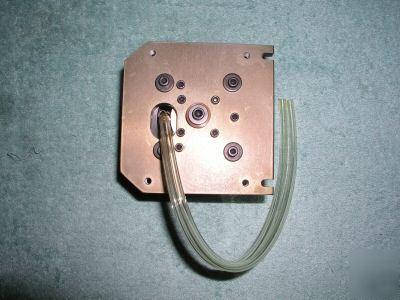

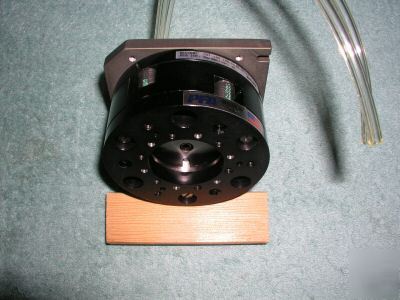

* The compliance device measures 100 mm (3.94”) in diameter x 46 mm (1.81”) tall. The lockout mechanism adds 22.75 mm (0.9”) of height and the mounting flange measures 101.8 mm (4”) square.
I removed this from the factory bag for pictures only so it is spotless.
* The picture shown is the actual item(s) being sold and everything that is included is shown or listed in the ad.
* Unless noted in the ad, I securely package all items and double box any item in OEM packaging.
