Yaskawa GPD315 / V7, 3.0 hp, 460VAC, ac variable drive

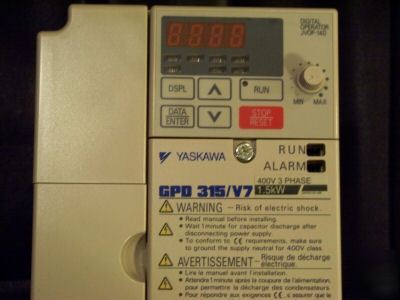

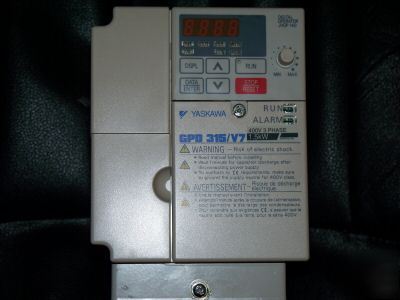

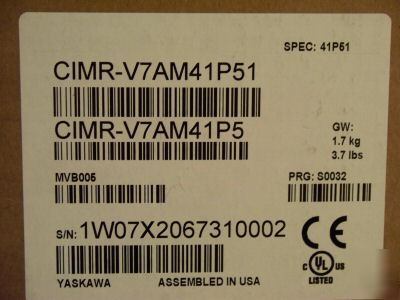

Yaskawa CIMRV7AM41P51 AC Drive, 3HP, 460V 3Phase, new in box.
Specifications and Features for V7 Drive
The V7 Drive is a high performance AC drive for induction motors, providing low motor noise and high starting torque. The V7 provides two control methods; V/f and open loop vector control for precision speed regulation applications. In addition to good speed regulation, open loop vector control also provides higher torque at lower speeds. The V7 is intended for constant torque applications, with current overload rating of 150% for 60 seconds.
The V7 is fully featured and compact. The digital operator provides 4-digit LED status display with a built-in analog speed potentiometer, as well as digital programming of almost 200 parameters. The digital pulse train input provides a precise frequency input, and is the perfect solution for speed / follower applications. The seven standard multi-function inputs can be programmed to allow for 17 preset speeds. The V7 also has an analog input, a multi-function output, two multi-function open collector outputs, and an analog output as standard.
The V7 is ideally suited for applications such as conveyors, grinders, centrifuges, pumps, fans, blowers, machine tools, packaging, food processing, and commercial laundry.
One of the outstanding options for the V7 is DriveWizard. This software enables upload, download, and monitoring of parameters. Another software, CASE, can add functionality to the drive by reconfiguring drive defaults, establishing presets for OEM equipment, and by eliminating peripheral controls and PLCs.
A RS-485 Modbus RTU communication port is standard, allowing 32 nodes on a single network. Plug-in interface option boards enable the drive to communicate with all the major networks, such as DeviceNet, Profibus-DP, and others. The option board installs directly on the drive control board via simple snap-in connectors.
A version of this drive called V7N is available with DeviceNet embedded in the drive control board, reducing cost and installation time.
Another version of this drive called V74X is available with integral NEMA 4X/12 enclosure for dusty and wet environments.
The V7 is provided in a NEMA 1 enclosure from 1/8 to 10 HP at 230 VAC and 1/2 to 10 HP at 460 VAC. (This V7 was previously named GPD 315/V7)
1/8 to 10 HP at 230 VAC, 1/2 to 10 HP at 460 VAC
* Constant torque overload rating:
150% for 1 min., 200% for 30 Sec. (250% peak)
* DC injection braking, ramp to stop
* Adjustable accel/decel: 0.01 to 6000 seconds
± 0.5 to 1% with slip compensation(1)
* Displacement power factor: 0.98
* Output frequency: .1 to 400 Hz
* Frequency resolution: 0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference
* Frequency accuracy: 0.01% with digital command, 0.5% with analog command
* Volts / hertz ratio: infinitely adjustable pattern
* DC Injection braking: adjustable amplitude, duration, current limited
* Torque boost: full range, auto
* Power loss ride-thru: 0.5 sec.
* 3 Critical frequency rejection settings
* Current limit, stall prevention during accel, decel, and run
* Instantaneous over current
* 16-bit microprocessor logic
* Digital keypad operator with analog speed pot
* Remote Mount Keypad Capability
* RJ45 Style Digital Operator Connector
* 7 multi-function digital inputs
* 24 VDC control logic compatible with sourcing or sinking outputs (PNP or NPN)
* Carrier frequency: 10 kHz maximum
* 16 multi-speed settings plus jog speed
0-10 VDC (20 kohms) or 4-20 mA (250 ohms)
* Signal follower: bias and gain
* 2 programmable open collector outputs
0-10 VDC proportional to output frequency or output current
* Approximately 200 parameters
* Digital pulse train input (30 kHz max.)
* Cooling fan controlled by drive run/stop
* RS-485/RS-422 serial communication port (up to 32 nodes)
* UL and cUL listed; CE approved
* UL recognized electronic overload
* Dynamic Braking Transistor
* Ambient service temperature:
-10° to 40°C (14° to 105°F)
* Ambient storage temperature:
-20° to 60°C (-4° to 140°F)
* Humidity: to 95% non-condensing
* Altitude: to 3280 ft; higher by derating
* Input voltage: -15% to +10%
* Input frequency:+/-5%; 50/60 Hz
* Phase sequence insensitive
Control Methods: (1) V/Hz Mode, (2) Open Loop Vector Mode
