Battery protector monitor saver multi-use auto-off lvd

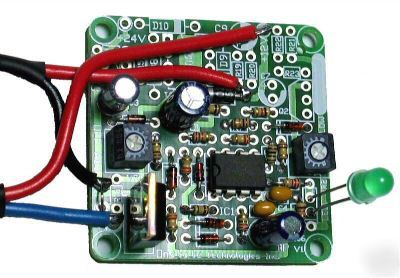

You are purchasing a brand-new Made-in-Canada Onstate Technologies multi-function Battery Protector module for battery monitoring and low-voltage-disconnect protection. All Onstate products are designed and manufactured in Canada. Unlike other brands that have limited functions, Onstate units are fully adjustable to provide the battery and equipment protection level required. There is also a flashing LED to indicate the battery level remaining. The MOSFET output can also be used to trigger a relay for specific applications. Visit for more information.
The BP Battery Protector is a multi-function low-voltage disconnect and battery monitoring unit. The adjustable voltage trigger settings allow for custom battery protection levels to maintain safe loading. Simply connect the Battery Protector inline with the load for power protection. A flashing LED indicates the battery level status.
- Adjustable low and voltage shut-off setting.
- Flashing LED status/level indication.
- Automatic operation. Auto shut-off and reset.
- Basic to full-function versions available
- Electronic fuse option available
- Malfunctioning charger LED indicator option available
- Prevents over discharged batteries.
- Prevents low and high voltage to equipment.
- Maintain reserve power for emergency use.
- Marine, industrial, automotive, recreational, field use, others.
- Battery and load protection.
- Voltage monitoring to equipment
CIR-BMBP-12V-1: standard Battery Protector multi-function, 12VDC 7A, inline MOSFET module.
Enclosures and plugs available from Digi-Key.
/Tech-specs/tech-specs.htm
See http:// /Tech-specs/tech%20BMBP%20Battery%20Protector%20rev3.pdf for more information.
Cut and paste if link not working.
http:// /Tech-specs/tech BMBP Battery Protector rev3.pdf
The Battery Protector requires no user intervention or affects the equipment in use during normal operation. The LED will start to flash slowly when the battery is below a preset level. The flashing rate will increase as the voltage decreases. The power output through the MOSFET or relay output will shut off once a preset low voltage level is reached. The LED will flash at a rapid rate to indicate the output is off. The shut off is set so there is enough reserve energy for emergency use or to start the boat/car once. It will stay off until the circuit is manually reset or automatically reset during battery charging. There is over voltage monitoring to ensure safe operating voltage to the equipment.
Technical Specifications (12V Model)
Standard pre-set settings. Other versions have optional features.
Low flashing voltage: 12V (adjustable)
Low shut off voltage: 11.2V (adjustable)
Low voltage reset: 12.8V (adjustable optional)
Over voltage shut off: 15.5V (adjustable optional)
Over voltage reset: 1.3-1.5V lower than over-voltage shut-off (fixed hysteresis)
Output current: 7A with N-CH MOSFET, 10A max. peak
Power consumption: 10mA max with LED on.
LED display: Green (good), flashing (low battery), (over-voltage, optional)
Operating temperature: -35°C to +65°C (-30°F to +150°F)
Module dimensions: 1.71†square (43.4mm square)
Mounting holes: 1.5†square (38.1mm square), 1/8†holes for M3 or #4 bolts.
Note: Do not use in wet locations. Do not exceed the specifications of the unit.
