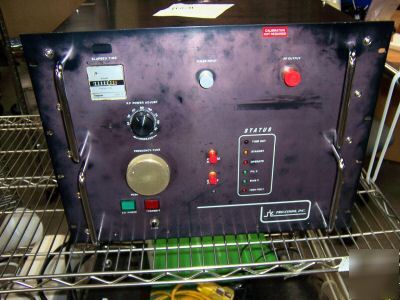

Pro-comm inc PC9002-10K microwave frequency amplifier
Frequency range (single knob tunable) 805 MHz to 932 MHz
RF Power Output 10 kW peak (min)
RF Power Adjustable max. to -4 dB
RF Pulse Width 2.5 msec min to 10 msec max
RF Power and VSWR Samples Forward: -36 + 1dB
AC Input 120 volts, single phase, 60 cps
Protection Circuit (limit) Duty cycle and Pulse Width
The unit can be serviced by the manufacturer.
