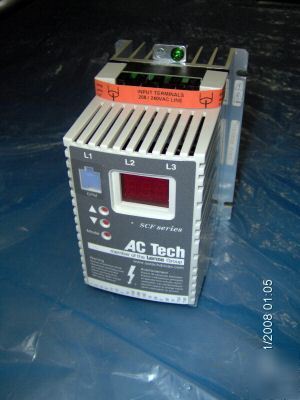

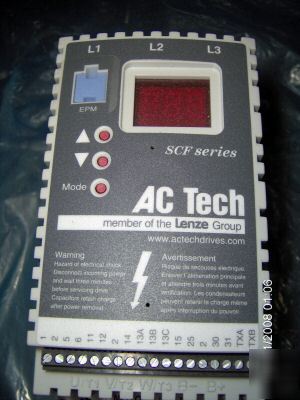

Ac tech adjustable speed motor control

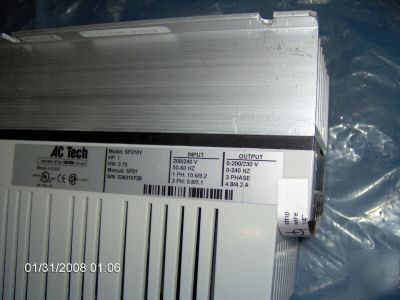

1 hp 208/240volt AC Motor Control
When your application requires more functionality, the SCF has the additional I/O to meet your needs. 2-wire RS485 network communication using Modbus RTU protocol is standard. The SCF allows for either 2-wire or 3-wire start stop without programming! Additional I/O provides for two solid-state outputs and two analog outputs (speed and load). The SCF also has optional models that offer set-point (PI) control or control for high speed motors up to 1000Hz output frequency.
* 0-10 VDC + 4-20mA speed reference
* Relay or transistor output(s) depending on model
* 3 or more programmable inputs
* Current limit to 180% (200% TCF) w/foldback
* Programming via: drive face; remote keypad (excluding scd); PC with TechLink; epm Programmer
* Isolated Control Terminals
* Highly visible 3 digit LED display

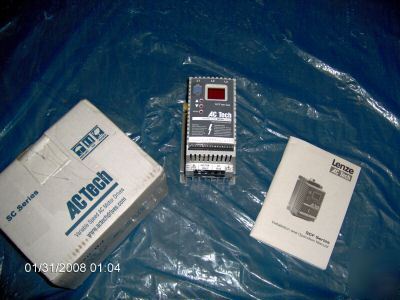

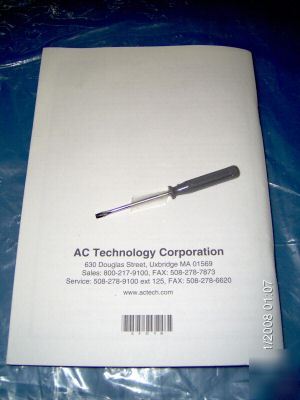

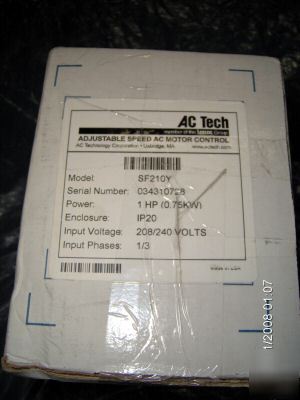

This is a brand new unit in manufacturers box. Includes manual. This unit list price is $ 249.00
