Brushless dc gear motor 24V variable speed 40 rpm 6 n-m

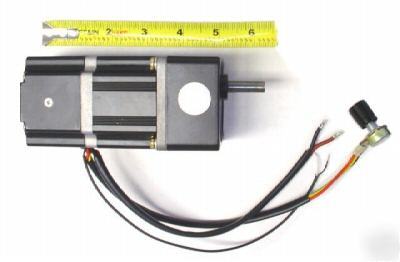

Brushless DC Gear Motor 24v Low Speed 40 RPM Gearmotor
This is a brand new BRUSHLESS DC electric gear motor that has extremely high torque to handle many
The specifications are listed below:
Brushless Motor Controller: Built-in
Poentiometer: 10 k ohm with knob included
Speed Range: 0-40 RPM (Variable Speed)
Rated Torque: 6.0 N-m (4.4 ft-lb)
Mounting: M5 screw holes at gear box front (face mount)
Shaft: 8mm shaft with 1 flat (D shaft); Shaft is 29mm long
Reversing Wires: Connect the two (thin) wires and the motor will reverse its rotation
WARNING: Do NOT attempt to reverse rotation by reversing the polarity of the supply lines. Doing so
will permanently damage the motor controller!
