C&d agm 25 -48V power plant
"ONE YEAR" ORIGINAL WARRANTY APPLIES
11110.405L.4, dc power, emergency power, alternative energy, eletek, emerson, marconi
* Configurable from 7.5 to 22.5 Amps of -48 Vdc Power
* Advanced hot-plug HFM48AC7.5 switchmode rectifiers
* -40 to +65 degrees C operation power derated up to +80 degrees C
* Compact size: only 2 rack spaces in 23" (58.42 cm) relay rack and 12" (30.48 cm) depth
* Advanced battery enhancement functions
* Advanced plant enhancement functions
Input Voltage: 106-264 Vac, Single Phase, 45-65 Hz: Auto Ranging with Input Current Limiting to Prevent AC Service Circuit Breaker Trip at Extreme AC Line Brownouts (110 Vac or 208/240 Vac Inputs)
Output Max. Power: 1,350 Watts: 22.5 Amps @ -60 Vdc
HFM48AC7.5 switchmode rectifiers.are normally priced in our store at $299.00 when purchased individually.

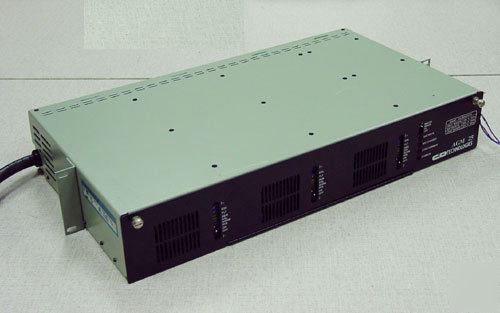

C&D TECHNOLOGIES' AGMâ„¢ 25 POWER PLANT with its advanced features is designed to meet the needs of Outside Plant, Fiber, PBX, Microwave and General Broadband applications.
Its compact size (only 2 rack spaces) is ideally suited for applications where space is at a premium. The AGM 25 can be configured from 7.5 Amps to 22.5 Amps using the C&D TECHNOLOGIES' -48 Vdc, 7.5 Amp Advanced Switchmode Rectifiers (HFM48AC7.5).
With C&D TECHNOLOGIES' unique pullout distribution tray, the system can be expanded with circuit breakers and/or fuses without power interruption. Utilizing the AGM 25 advanced battery and plant features, GMT fuses, LVD, and advanced monitor and control, a complete, truly state-of-the-art Power Board System can be configured to meet virtually any -48 Vdc power requirement up to 22.5 Amps in the minimum of space.
