New est true usb willem programmer tsop adpt 39VF3201

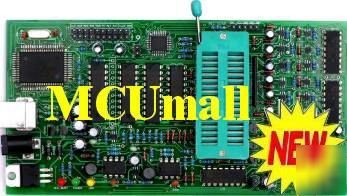

* New Generation Automatic True-USB Willem Universal Programmer Set (hardware version: MCUmall GQ-3X)
* Plus one TSOP48 16bit ZIF adapters
This combination package is the most in-expensive/affordable solution in the market for TSOP48 16bit chips: such as SST39VF3201
At A Glance on True USB willem programmer (GQ-3X)
* USB Data Transfer Interface (Eliminate DB25 data cable)
* Eliminate all jumpers and DIP-switch on programmer board
* Fully automatic willem programmer, no need any manual set-up for DIP switch and jumpers
* Free Life-time software download/upgrade
* Exponentially speed increase over all parallell willems,this facilitate the high density chip application
* Programming history memory function on-board
* Most user-friendly interface & easiest-to-use Willem programmer version
* Dual power supply (USB & AC/DC) capability
* Vcc supported among: 3.6V, 5V, 5.5V, 6.5V
* Supports Win98SE, Me, XP, NT, 2000 & Vista 32bit
* Supports most popular ECU, Satellite,xBox, Wii, BIOS, EPROM chips: SST39VF3201 , TE28F102, 27C1024, 29F800, 29LV800...
* Designed, developed and Post-sales support by MCUmall Electronics Inc. Canada
Intellectual property owner of USB Willem Programmer MCUmall GQ-3X & GQ-2X: MCUmall Electronics Inc.
At A Glance on ADP-042 TSOP48 16bit ZIF adapter
* High quality open TOP ZIF socket
* High performance and low cost (similar item costs you at least US$100)
* Can be used for True USB willem and parellel willem programmer
* Devices (16bit) supported:
TE28F160C3T,TE28F160B3T,JS28F160C3T,LHF00L30,M28W160CT,SST39VF200A,SST39VF400A,SST39VF800A,
SST39LF200A,SST39LF400A,SST39LF800A,SST39VF1601,SST39VF3201,SST39VF6401,SST39VF1602,
* One True-USB Willem Programmer Board with High Quality 32pin ZIF (MCUmall GQ-3X)
* One USB Cable (for both power supply and data communication)
* One Installation CD with software & PDF manual (electronic version)
* One TSOP48 16bit ZIF adapter
The latest software also can be downloaded from www MCUmall com website
For more details of True USB willem programmer GQ-3X , please refer to the following description
This new generation true-USB Willem programmer (GQ-3X) is the first fully automatic, USB data transfer, high speed, most user-friendly Willem universal programmer in the market. The USB willems are developed/designed/supported by MCUmall Electronics Inc. in Canada
It uses only one USB cable to connect with PC/Laptop USB port for both data transfer and power supply. The bulky DB25 data cable (over 100g) is no longer needed. The USB willem can be used for portable and convenient applications, such as newer laptop, car/automotive field ECU chip tuning...
It is a fully automatic willem programmer which eliminate all jumpers & DIP switch on the parrellel willem programmer board. This extends the programmer life time and makes much easier & very simple to use for end users. Manual set-up for DIP switch and jumpers is no longer needed.
It connects PC via high-speed USB link, provides the fastest possible data transfer rates for programming/reading data from target IC's. It is capable of being up to 20 times faster than other existing printer port willem (parrellel willems) programmers on reading & verification a high density flash device, this significantly saves your time and increases work efficiency as well as facilitate small scale production.
* Universal Programer supports over thousand chips & growing
* USB port data transmission with PC/Laptop no longer need DB25 data cable which is required by LPT willem
* Significantly increase the speed up to 20 times faster than all LPT Willems ((PCB5.x,4.5x, 4.x..)
* Updates software and device algorithm regularily and free IC device updates via web
* Auto programming voltage control prevent chip from damage by set wrong voltage jumper
* Power suppuly can be from USB port or AC external power supply by auto detection
* On-Board MCU for ensuring most stable performance
* Eliminate all on-board sockets of LPT willems, all DIP chips use ZIF to protect chip lead broken
* Eliminated all DIP and jumpers on board. The user no longer need to worry about the jumper settings & DIP switch setting, fully automatic
* Fixed all hardware design issues in Enhanced Willem. Improved the voltage management from GQ-2X model.
* Binary data editing,device search feature,batch run and short cut key operations
* Supports the chips that LPT Willem are not capable of supporting, like 24RF08,28F102,87C257 and more
* Support TSOP48,PSOP44,16bit EPROM chips that 40 pin TOP,EasyPro are not capable of supporting
* Program a wide range of devices: EPROM, EEPROM, FLASH, Serial_EPROM, PIC, MCU, AVR,SRAM and etc.
* All willem family adapter supported: TSOP48 (16bit & 8 bit), TSOP32, PSOP44, DIP, PLCC, SOP,SOIC, MCS-51+ and etc.
* Hardware Version: MCUmall GQ-3X
* Supports most popular ECU, Satellite,xBox, Wii, BIOS, EPROM chips:SST39VF3201, TE28F102, 27C1024, 29F800, 29LV800...
Example speed data comparison of real USB Willem programmer versus parrelell/LPT Willem version:
True-USB Willem (MCUmall GQ-2X/3X )
True-USB Willem (MCUmall GQ-2X/3X)
For more details on software & hardware features;USB willem and parrellel willem comparison; FAQ, please click here
* Motherboard BIOS freshing & upgrading
* Car/automotive ECU chip tuning, memory device code read/write,program
* xBox, wii chip freshing & upgrading.
* MCU programming & development.
* Copier,Fax machine,printer main board reparing.
* VCD,DVD, color TV maintaining& repairing.
* Game machine repairing
* Small scale production
* On-spot/Field/portable applications
* Satellite large capacity device applications
* Technically supported by MCUmall Electronics Inc., Canada
* We accept return-for-refund or return-for-exchange
Have a quesiton? Please email: ****@mcumall.com.
Free latest software download/upgrade
* Multiple Currency Accepted, you can pay in either: US$/Canadian$/Euro/GBP
