12V brushless dc motor variable speed 12VDC cw
12v Brushless DC Motor Built-in Controller CW 12vdc

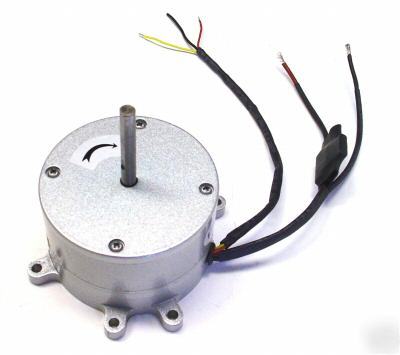

This is a compact 12vdc brushless motor that outputs 100W of power with a controller integrated to the
motor. 2 wires for the power lines and 3 thinner wires for connecting to a potentiometer. Motor has a
reverse polarity protection in case that an user accidentally wires the power lines incorrectly. When
reverse polarity occurs, a fuse will burn out and all the user has to do is to replace the fuse and the
motor is good as new. Motor is a Hall-sensor type. Specifications are listed below:
Motor's Body Length: 2.5 inches
Shaft Diameter: 8mm with one flat surface (D shaft)
Housing Construction: Die-cast aluminum
Mounting: Rear mount with 2-hole, 3-hole and 4-hole mounting patterns
Speed at Rated Output: 2700 RPM
Speed Control Type: 3 wires for 10k ohm potentiometer, yellow to wiper, red to return, black to ground
Magnet Material: Rare-earth magnet (Neodymium)
Protections: Current limiter, reverse-polarity, load-dump
Wiring: Black to negative; red to positive
