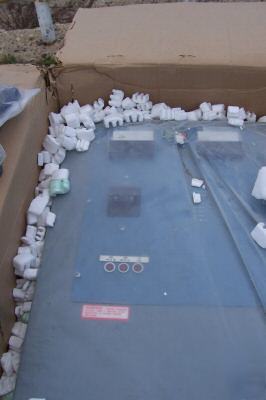

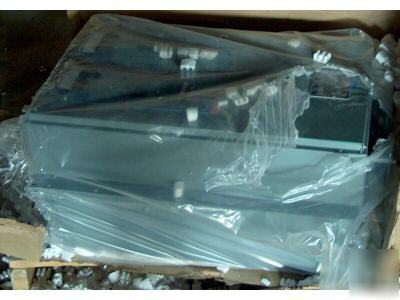

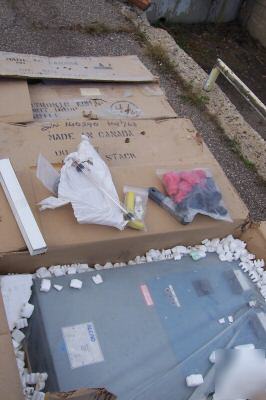

Alcad battery charger slrf 242186
This is a brand new Alcad Battery Charger. The SLRF48-25 chargers will operate as a stable source of DC power without the battery connected, 120 Volt or 208 Volt single phase and can be field modified to either voltage. Ripple Voltage maximum 30mV RMS, Convection cooled, 3" DC voltmeter and ammeter, AC on LED and High Rate LED.
Insulated class magnetics 180 temperature rating, voltage breakdown 2500V minimum. Controls; Float/high rate pushbutton Current limit adjustment, float and high rate adjustment. AC input breaker: two pole, 5000 AIC, Fast acting type DC output fuse. meets operational standards of NEMA PE5.
Input 120 volts AC @ 22 amps 60HZ. Output -48 volts DC @ 25 amps. Phase input (1), Cells output 24 L/A, Heat Loss 850 BTU/HR, Dimensions 27H, 15 5/8 W, 14 D, 119 LB's.
We have a large inventory of DC power equipment by Marconi Lorain and S&C 2 pole Distribution Switches with 2000 amp bolted pressure switches. Check out our web site and search Liquidation for what you are looking for. You may contact us for query at email sanchez@highrisebuilder.us,
For more information call: Roger @ 01.630.605-3707
