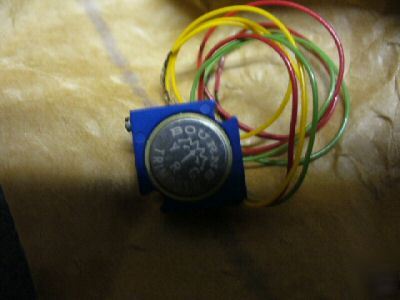

Resistor,variable,nonwire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 50.0 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
MAXIMUM STARTING TORQUE - 5.00 INCH-OUNCES
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -250.0 TO 250.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.5 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 85.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 150.0 SINGLE SECTION
BODY STYLE - 32B RECTANGULAR W/MOUNTING HOLES
BODY LENGTH - 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
BODY WIDTH - 0.182 INCHES MINIMUM AND 0.197 INCHES MAXIMUM
BODY HEIGHT - 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS - 0.513 INCHES MINIMUM AND 0.526 INCHES MAXIMUM
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.058 INCHES MINIMUM AND 0.098 INCHES MAXIMUM
SHAFT LENGTH - 0.025 INCHES MINIMUM AND 0.045 INCHES MAXIMUM
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 7200.0 MINIMUM AND 16200.0 MAXIMUM
ACTUATOR TRAVEL CONTROL FEATURE - CLUTCH
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 7200.0 MINIMUM AND 16200.0 MAXIMUM
MOUNTING METHOD - UNTHREADED HOLE
MOUNTING FACILITY QUANTITY - 2
MOUNTING HOLE DIAMETER - 0.090 INCHES MINIMUM AND 0.098 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY - 3 WIRE LEAD
RELIABILITY INDICATOR - NOT ESTABLISHED
III OVERALL LENGTH - 0.515 INCHES MINIMUM AND 0.555 INCHES MAXIMUM
III OVERALL HEIGHT - 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
III OVERALL WIDTH - 0.197 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILR22097-3
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RJ22CL503
