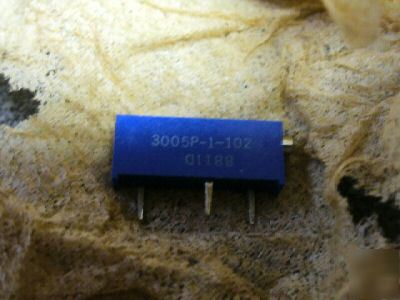

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 1.0 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
MAXIMUM STARTING TORQUE - 5.00 INCH-OUNCES
MAXIMUM RUNNING TORQUE - 5.00 INCH-OUNCES
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -100.0 TO 100.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 1.0 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 40.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 125.0 SINGLE SECTION
BODY STYLE - 26B RECTANGULAR W/MOUNTING HOLES/SLOTS
BODY LENGTH - 0.750 INCHES NOMINAL
BODY WIDTH - 0.160 INCHES NOMINAL
BODY HEIGHT - 0.310 INCHES NOMINAL
LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS - 0.500 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.100 INCHES NOMINAL
SHAFT LENGTH - 0.060 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 7200.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - CLUTCH
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 7200.0 NOMINAL
MOUNTING METHOD - UNTHREADED HOLE
MOUNTING FACILITY QUANTITY - 2
MOUNTING HOLE DIAMETER - 0.086 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.500 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.200 INCHES NOMINAL
TERMINAL LENGTH - 0.150 INCHES NOMINAL
TERMINAL LOCATION - LOWER ADJACENT SIDE SINGLE ROW
RELIABILITY INDICATOR - NOT ESTABLISHED
III OVERALL LENGTH - 0.810 INCHES NOMINAL
III OVERALL HEIGHT - 0.460 INCHES NOMINAL
III OVERALL WIDTH - 0.160 INCHES NOMINAL
