Trans-tek 605 absolute position rotary transducer
* Based on differential capacitance and designed to provide a simple means of inputting angular position into analog or digital systems (full scale output).
* 120 degree range with accuracy less than +- 0.25% of specified range
* CCW rotation (as viewed from the shaft end)
* Input +- 14.5 to +-26 VDC (reverse polarity protected), current = 40 mA max
* Output = 4-20 mA (temp range is + 32F to +158F)
* MS style connection includes the mating connector & 28†long cord
* 1.49†diameter mounting flange with 0.7492†centering diameter and three (3) 8-32 mounting holes on a 1.1†diameter B.C.
* 0.1871 diameter stainless steel shaft x 0.73†long with a single flat spot for alignment
This came in a lot of new spare parts and it is spotless. The mounting face and shaft appear to be untouched and this unit is clean.

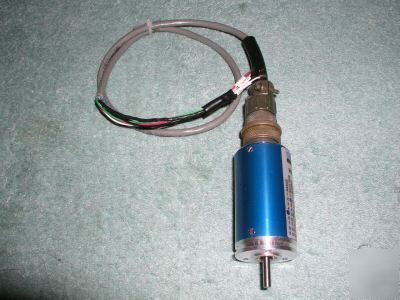

* The picture shown is the actual item(s) being sold and everything that is included is shown or listed in the ad.
* Unless noted in the ad, I securely package all items and double box any item in OEM packaging.
