30PCS 20X4 character lcd display with blue backlight
hello! We are in economic center of China Shanghai. It is the distributing centre of the electronic devices and components. Welcoming the connection to book the order form series in enormous quantities, we will offer the most favorable good service.
More fixed prices, please Check out my other items!
The module is a low-power consumption dot-matrix LCD Module with a built-in controller. The module can be easily interfaced with a MCU. Made in China.

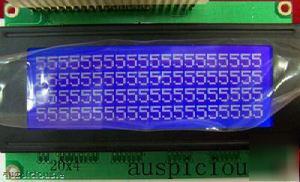

30pcs 20X4 Character LCD Display with BLUE backlight
INTERFACE PIN FUNCTION DESCRIPTION
Power supply for logic circuit(+5V)
For LCD drive voltage (variable)
H: Display Data, L:Display Instruction
H: Data Read (LCM to MPU) ; L: Data Write (MPU to LCM)
Write mode (R/W = L) ® data of DB<0:7> is latched at the
Read mode (R/W = H) ® DB<0:7> appears the reading data
Data bus. There state I/O common terminal.
Power for LED Backlight (Ground)
Display Format: 20 Characters X 4 Lines
Drive Method: 1/16 Duty , 1/5 Bias
Driving voltage: single +5V supply.
Operating Temperature: -20℃~+60℃
LCD Driver: 4-or 8-bit paralled.
Module Size : 98mm X 60mm X 14mm
Viewing Area : 75.7mm X 25.2mm
