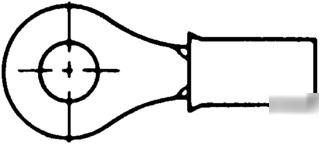

Amp # 320551 terminal ring tongue pidg 22-16AWG
Wire/Cable Type = Regular Wire
Insulation Support = Insulation Support
Insulation Diameter (mm [in]) = 3.18 [.125] Max.
Stud Diameter (mm [in]) = 4.17 [0.164]
Tongue Material Thickness (mm [in]) = 0.84 [0.033]
Wire Range (mm [AWG]) = 0.26-1.65² [22-16]
Wire Range (CMA) = 509 – 3,260
Government/Industry Qualification = Yes
Government/Industry Part Number = MS25036-149, AS25036-149
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Always was RoHS compliant
Packaging Method = Loose Piece
