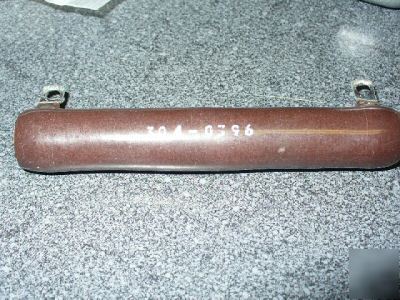

Resistor,fixed,wire wound,noninductive
ELECTRICAL RESISTANCE - 5.500 OHMS
RESISTANCE TOLERANCE IN PERCENT - -5.000 TO 5.000
POWER DISSIPATION RATING IN WATTS - 5.000 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 40.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 275.0
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 20 RADIAL TERMINAL EACH END
BODY DIAMETER - ANY ACCEPTABLE
BODY LENGTH - 4.000 INCHES NOMINAL
TERMINAL TYPE - TAB, SOLDER LUG
RELIABILITY INDICATOR - NOT ESTABLISHED
TERMINAL LENGTH - 0.438 INCHES NOMINAL
TERMINAL WIDTH - 0.188 INCHES NOMINAL
