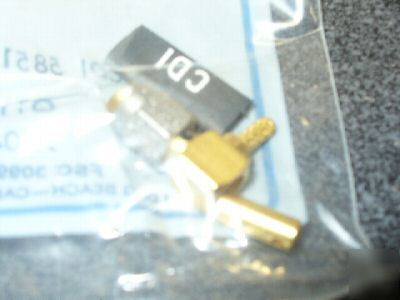

Connector,plug,electrical
BODY STYLE - 3D ANGLE, SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.036 INCHES NOMINAL
OVERALL HEIGHT - 0.700 INCHES MAXIMUM
OVERALL DIAMETER - 0.312 INCHES NOMINAL
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNS
NOMINAL THREAD SIZE - 0.250 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CRIMP TYPE
CABLE ENTRANCE DIAMETER - 0.063 INCHES NOMINAL
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-S-763,TY 302 OR 304 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-764,TY 303 FED SPEC SINGLE MATERIAL RESPONSE OR ASTM A582 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT - PASSIVATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-35,TY 1,II,III OR VI,ALLOY 302 OR 304 FED SPEC SINGLE TREATMENT RESPONSE
CONTACT POSITION ARRANGEMENT STYLE - ABDN SMA SINGLE MATING END
INSERT MATERIAL - PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-P-19468 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION - QQ-C-530,CONDITION A OR H FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 2,GRADE C OR D MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - SIDE SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - SHOCK RESISTANT AND VIBRATION RESISTANT
III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACE GOLD
