Nsk HT111 ballscrew servo driven two axis linear table


* Triple guide ways for each axis-I actually count 4 rails with two LS15 cars/rail on one axis and 3 rails on the other, two with two cars/rail and one with one car.
* 12 mm diameter ballscrews with what appears to be a 2 mm lead.
* It has sensor rails for both axes, flags and three optical sensor brackets.
* The table is constructed from either 400 series stainless steel or is nickel coated steel for corrosion resistance. All of the dust covers and fasteners are 300 series stainless steel.
* It has 11 cm (4.33”) of travel in each direction.
* The carriage measures 317.5 mm (12.5”) long x 112 mm wide (4.41”) x 10 mm (0.397”) thick with a 4” mounting height.
* This unit comes with two mounted Yaskawa type USAREM-01DSW13 AC servo motors with integral type UT0PH-200WK incremental encoders. The motors are rated for: 100 watts, 0.32 N-M, 1.7 amps and 3000 RPM.
* Overall, the table measures 22” long x 15” wide x 4” tall. The base plate is 20 mm thick.

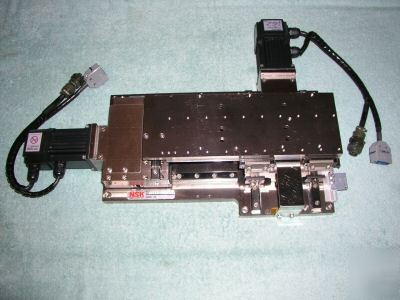

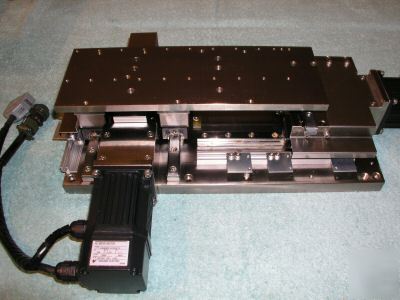

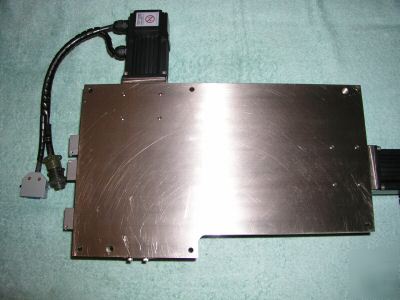

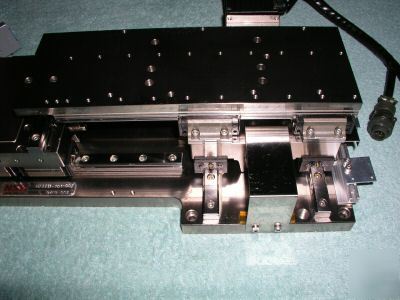

* The picture shown is the actual item(s) being sold and everything that is included is shown or listed in the ad.
* Unless noted in the ad, I securely package all items and double box any item in OEM packaging.
