Wima mkp 10 0.022UF/1600V capacitor tube amp radio

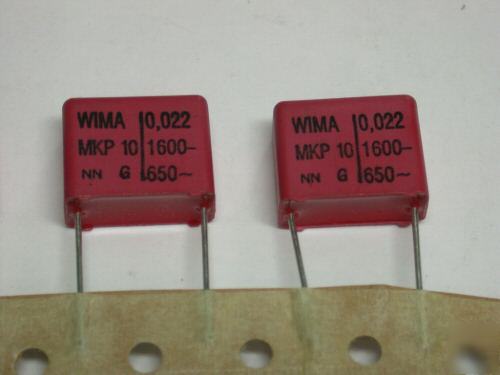

∞∞ MKP 10 WIMA 0.022uF1600V +/-10% Capacitor ∞∞
Radial Mount, NOS NEW in Box Package. Per Lot 10 pieces

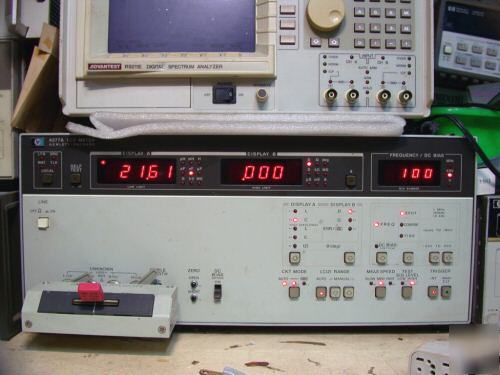

I test some of them on HP4277A and get below reading:
Sample 1: 21.6nF, D=0.000 / 100KHz, Z=73.67ohm / 89.96 / 100KHz
Sample 2: 21.76nF, D=0.000 /100KHz, Z=73.16ohm / 89.96 / 100KHz
I can give you lower and best price if you need more, please contact for detail.
Polypropylene (PP) Capacitors for Pulse Applications with Double-Sided Metallized Electrodes and Schoopage Contacts in PCM 7.5 mm to 37.5 mm
Double-sided metallized plastic film
Solvent-resistant, flame retardent plastic case with epoxy resin seal, UL 94 V-0
Colour: Red. Marking: Black. Epoxy resin seal: Red.
100VDC, 250VDC, 400VDC, 630VDC, 1000VDC, 1600VDC, 2000VDC, 2500VDC
55/100/56 in accordance with IEC
Insulation resistance at +20°C:
C > 0.33 µF: > 30000 sec (M xµF)
Measuring voltage: 100V/1 min.
Dissipation factors at +20°C: tan
A voltage derating factor of 1.35% per K must be applied from +85°C for DC voltages and from +75°C for AC voltages.
Operational life > 300000 hours
Failure rate < 1 fit (0.5 x Ur and 40°C)
Maximum pulse rise time: for pulses equal to the rated voltage
max. pulse rise time V/µsec at TA < 40°C
d < 0.8 Ø: 10 N in direction of leads
d > 0.8 Ø: 20 N in direction of leads
6 hours at 10...2000Hz and 0.75mm displacement amplitude or 10g in accordance with IEC 60068-2-6
1kPa = 10 mbar in accordance with IEC 60068-2-13
4000 bumps at 390 m/sec2 in accordance with IEC 60068-2-29
Available taped and reeled up to and including case size 15x26x31.5 / PCM 27.5mm.
Example for ordering / Part number:
