Maxim MAX6955 led I2C display driver evaluation kit

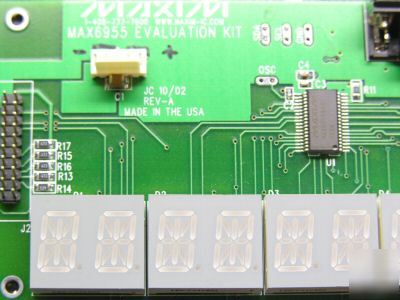

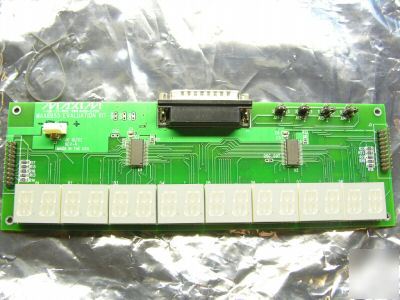

The MAX6955 evaluation kit (EV kit) is designed to evaluate the MAX6955 light-emitting diode (LED) display driver with a 2-wire interface. The EV kit board contains two MAX6955 LED display drivers on symmetrical sides of the board, allowing a 16-digit display using sixteen 14 segment alphanumeric LEDs. The DB-25 connector allows a PC’s parallel (printer) port to provide the 2-wire interface. The Windows software provides a friendly graphical user interface (GUI) to exercise the features of the MAX6955 by allowing on-the-fly text and numeric entry and access to all relevant registers.
Detailed documentation available for free at MAXIM web site.
• Canada: 5 to 6 business days $10
