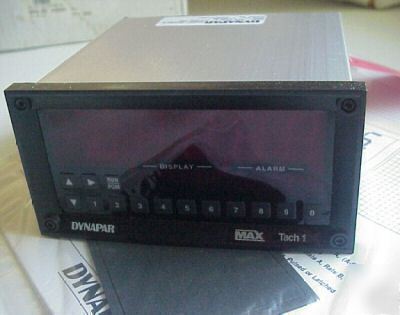

New dynapar max tach 1 rate & draw indicator ~MT100S00 ~
RATE AND DRAW INDICATOR WITH ALARMS
The MAX Tach 1 is the leader in microprocessor based rate and draw instruments. The large LED display and informative annunciators combine with menu-driven programming to simplify setup and operation. Two rate channels that accommodate both low resolution and high speed inputs making input sensor selection noncritical. A programmable draw function allows complex monitoring of processes previously requiring more complicated instrumentation.
Communications is provided by the standard serial port or with an optional interface to a parallel BCD data buffer.
* 0.01% accurate time interval measurement
* Large, bright 0.8" high red LED display
* Full ±5 digit display capability
* Draw modes available: difference (A-B); ratio (A¸B); percent draw (A-B) ¸ A or (A-B) ¸ B
* High and low alarm setpoints with indicators and outputs for rate A, rate B and draw (six total)
* Separately programmable calibrators and decimal point position for each channel
* Full duplex RS-485/422A serial communications
Rate monitor and control applications for the MAX Tach 1 include production rate, material speed and motor RPM. Use of the draw functions would include gear ratio, web or material stretch, conveyor matching and blending machinery.
Panel Mounting: 2.68" x 5.43" cutout; 5.68" depth
Accuracy: ± 0.01% crystal controlled
Inputs: Pulsed (square wave) current source; 30 kHz max.
Display: 5 digit, 0.8" LED; update rate 0.6 seconds or 1 signal period
Alarms: (6);1 high and low each for rate A, rate B and draw; open collector outputs
Calibration: Independent for A and B; programmable 0.0001 to 99999.
Power Requirements: 95 to 130, or 190 to 260 VAC, 50/60 Hz, 6 VA; 9 to 15 VDC @ 0.3 A max.
Accessory Power: + 12 VDC ± 5% @ 0 to 175 mA
Operating Temperature: 32° to +122°F (0° to +50°C)
TECHNICAL MANUAL/ INSTRUCTIONS INCLUDED
This item comes from a business liquidation. Please look at my other listings - I have plenty of industrial and electrical supplies available, and will be adding more regularly.
