.1UF @ 1000 volts tubular axial film capacitors qty=10
* ...Always a Money Back Guarantee

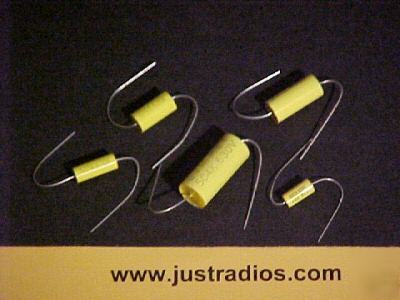

On sale are package of ten (10) brand new 0.1 mfd/uf tubular axial leaded 1000 volt metalized polyester film capacitors. These film capacitors are constructed of premium metallized polyester.
As are all of our film capacitors, these 1000 Volt capacitors are made by ISO 9002 & 9001 certified manufacturer / OEM supplier to CDE (Cornell-Dubilier).
Capacitor Features and Specifications:axial_capacitors
* Highest quality MET Metallized Polyester Film Construction.
* Tubular body, wrapped with polyester film tape and ends sealed with epoxy resin.
* Highly stable and reliable with "self-healing" property.
* Long copper-ply (38mm / aprox 2 inch) axial leads for easy "under chassis" installation.
* High moisture resistance and space saving compact size body.
* Operating temperature range:-40 to +85C
* Capacitance tolerance +/- 10%.
* Rated Voltage: DC 1000 Volts
* Testing Voltage: 160% of rated voltage for 60 seccond ie 1600 volts for 1 minute.
* Capacitance Range: Available in "hard to find" pre WWII tube radio sizes 0.01uF, .02uF, .05uF and .1uF (for under 0.01 uF our 1000 Volt Metallized Polypropylene capacitors are recommended)
* Dissipation Factor at 1KHz =< 1%
* Insulation Resistance(min) C=<0.33,RV=<100V:15000Mohm ; C>0.33,RV=<100V:5000Mohm.uF ; C=<0.33,RV>100V:30000Mohm ; C>0.33,RV>100V:10000Mohm.uF
* Excellent replacement for paper/wax capacitors in tube radios.
* Excellent reputation in use for DC blocking, coupling, filtering and by-pass
* Ideal for tube audio/radios/amps/TV/juke-box/test equipment, telecommunications equipment, industrial instruments, electronic equipment and other general purposes.
* ISO 9001 & 9002 certified.
