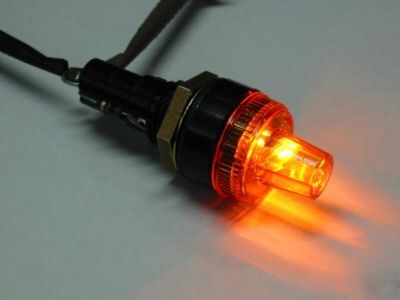

Blown-fuse indicating panel mt fuseholder for 3AG fuses
Electrical: Rated at 20 amperes.
Dielectric withstanding voltage exceeds 1500 volts.
Mounting: Withstands 15 lb.-in. mounting torque. Maximum panel thickness is .250".
Molded Parts: Black Thermoplastic (UL 94V0), except lens is thermoplastic (UL 94V2).
Terminals: Copper & copper alloy. Tin plated.
Ambient Temperature: –40°C to +85°C.
Hardware: Neoprene washer, lockwasher & hex nut.
All fuseholders are supplied with a current limit resistor in series with the lamp. When designing indicating type fuseholders into a circuit, consideration should be given to the resistance of fractional amperage fuses and the parallel resistance of the indicator lamp and its resistor.
