> New 1TS609B vintage germanium transistor array, 2 pcs
New 1TS609B vintage germanium transistor array, 2 pcs

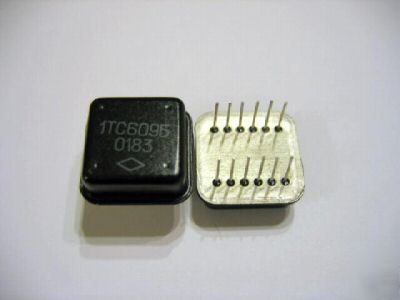

1TS609B Vintage Germanium Transistor Array, NEW 2 pcs
1TS609B - Germanium PNP Transistor array, each containing 4 Germanium transistors.
Package: metal 12 pin (for pinout see the datasheet below)
Very RARE part with very high production quality. Could be a great item for chip collectors too.
- Static coefficient of current transmission in Common Emitter, Ie=0.5A, 1000Hz -> 53-160
- Ic (Reverse collector current), Uc=30V -> 30 uA max
- Ie (Reverse emitter current), Ue=2.5V -> 100 uA max
- Uce-sat - (saturation voltage), Ic=0.5A, Ib=70mA (group A) or 40mA (group B, C) -> 1.6V max
- Ube-sat - (saturation voltage), Ic=0.5A, Ib=70mA (group A) or 40mA (group B, C) -> 1.1V max
- Maximum voltage, Ic=0.5A, pulse length 10us, -> 30V at least
If you need a complete datasheet, please let me know and I will send you one by e-mail.
