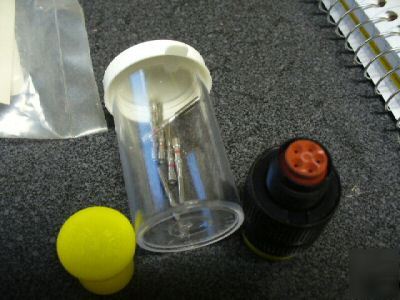

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.375 INCHES MAXIMUM
OVERALL DIAMETER - 0.906 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET SHELL
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 0.562 INCHES
SHELL MATERIAL - ALUMINUM ALLOY 6061
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-367 T-6 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT - ANODIZE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - AFBA 10-5,10-05 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 7.5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - RHODIUM SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND PRESSURE PROOF AND VIBRATION PROOF
III PRECIOUS MATERIAL - RHODIUM
III PRECIOUS MATERIAL AND WEIGHT - 0.005 RHODIUM GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES RHODIUM
