> Linak LP2-2 12V actuator lifting column 2000 n thrust

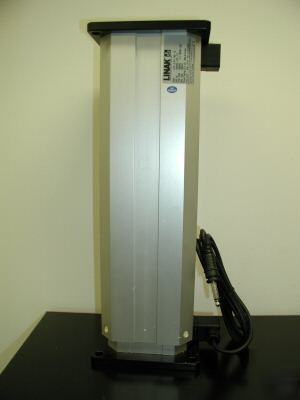

Linak LP2-2 12V actuator lifting column 2000 n thrust
Typically used in the hospital and care sector for height adjustment of e.g. stretchers, incubators and surgical chairs.
The LP2 range of vertical lifting columns is ideal where vertical positioning of substantial loads is required.
The design allows the LP2 range to be built in a complete motion control system simply by adding a suitable LINAK control box and handset.
Advanced design and high quality construction allows the column to be operated either as single or parallel with up to a max. of 4 units and/or with a memory function.
The LP2 lifting column is the ideal choice for duties such as height adjustment on computer work stations, work benches or a wide selection of other duties.
• LP2 is a specially designed telescopic aluminium lifting column incorporating a LINAK® 24 V DC linear actuator.
• It is designed to provide vertical lifting (push only) where simultaneous bending and torsion moments may occur
• LP2 lifting columns are available in 2 versions, the LP2-2 (small column) and the LP2-5 (large column)
• Thrust up to 6300 N with gas spring (push only)
• In each end of the column there is a black painted steel plate, in which there are 4 holes for the fastening of the column
• Robust anodised aluminium surface
• Cable: black 2,4 m straight supply fitted with jack-plug
• Standard protection class: IP 51
• Ambient temperature +5°C to +40°C
• Duty cycle: 2/18; 2 minutes continuous use followed by 18 minutes not in use.
• LP2 is compatible with CB8, CB12, CB14 or CB18
